Water ripples. Fire flickers. RGBW live.
MaxiWAVE is an 80 W linear RGBW effect light that projects dynamic water and fire animations onto any surface. One-metre die-cast aluminium body, IP65, full DMX512 control — for facades, water features, hospitality, retail and event scenography.
Behind the tempered glass window, a high-power RGBW LED engine drives a mechanical stepper motor with a precision-etched water pattern. The combination produces a continuous, non-repeating water ripple in cool tones — or a warm, dancing fire flicker when the palette shifts to red-orange-amber.

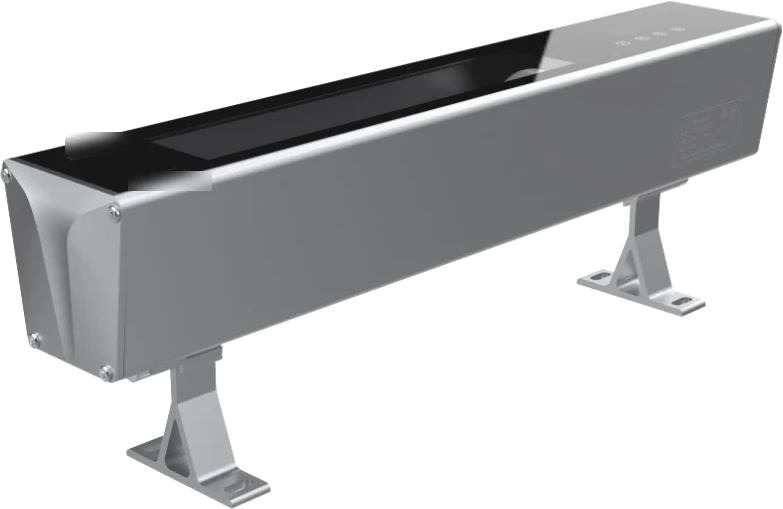

1 m die-cast aluminium body, tempered glass face, IP65 sealed. Passive cooling — no fans, no noise. Rotating bracket for precise beam aiming from floor, wall or ceiling.
Finishes: Silver, Black, or custom RAL on request.
Full DMX512 for integrated show control, standalone auto-run for architectural installations, or direct manual control through the onboard LCD touch panel. The animation speed and rotation direction are independently adjustable.
6 or 8 channel mode selectable from the display. Direct control of water motor, dimmer, R/G/B/W, strobe and macro selection.
Standalone cycle through the built-in water/fire programme. No controller required. Speed adjustable from slow drift to fast animation.
Onboard touch panel for direct parameter control: water motor, strobe speed, individual R/G/B/W dimming and system diagnostics.
Three fixed optical configurations at ordering: 120° wide throw, 50°×120° asymmetric wall wash, or fixed-focus spot pattern.
| Optical & electrical | |
| Light source | High-power RGBW LED |
|---|---|
| Power consumption | 80 W |
| Working voltage | AC 230 V · 50 / 60 Hz · DC 48 V option available |
| Beam angle | 120° · 50° × 120° · fixed focus (selected at ordering) |
| Projection distance | 3 m – 10 m |
| Effect | Water ripple & fire flicker — RGBW full-colour, adjustable speed and rotation direction |
| LED lifetime | ≥ 20 000 h |
| Control | |
| Protocol | DMX512 · Auto-run · Manual |
| DMX channels | 6 or 8 channels (selectable via onboard display) |
| Signal interface | XLR · DMX512 standard |
| Display | Onboard LCD touch panel |
| Mechanical | |
| Housing | High-strength die-cast aluminium alloy + tempered glass |
| Finish | Powder coating — Silver, Black, or custom RAL on request |
| Installation | Rotating bracket (angle adjustable, floor / wall / ceiling) |
| Cooling | Passive — fanless |
| Dimensions (L × W × H) | 1000 mm × 86 mm × 170.8 mm (with bracket) · 500 mm length also available |
| Weight | 8 kg |
| Environmental & compliance | |
| IP rating | IP65 |
| Electrical class | Class I (earthed) |
| Operating temperature | −25 °C / +45 °C |
| Storage temperature | −40 °C / +70 °C |
| Application | Indoor & outdoor · architectural, water features, hospitality, branding |
| Certifications | CE · RoHS |
Whether it's a hotel facade, a garden pool or a corporate lobby, our team helps you plan the right configuration — beam, throw distance, control chain — and delivers the fixture ready to install.
